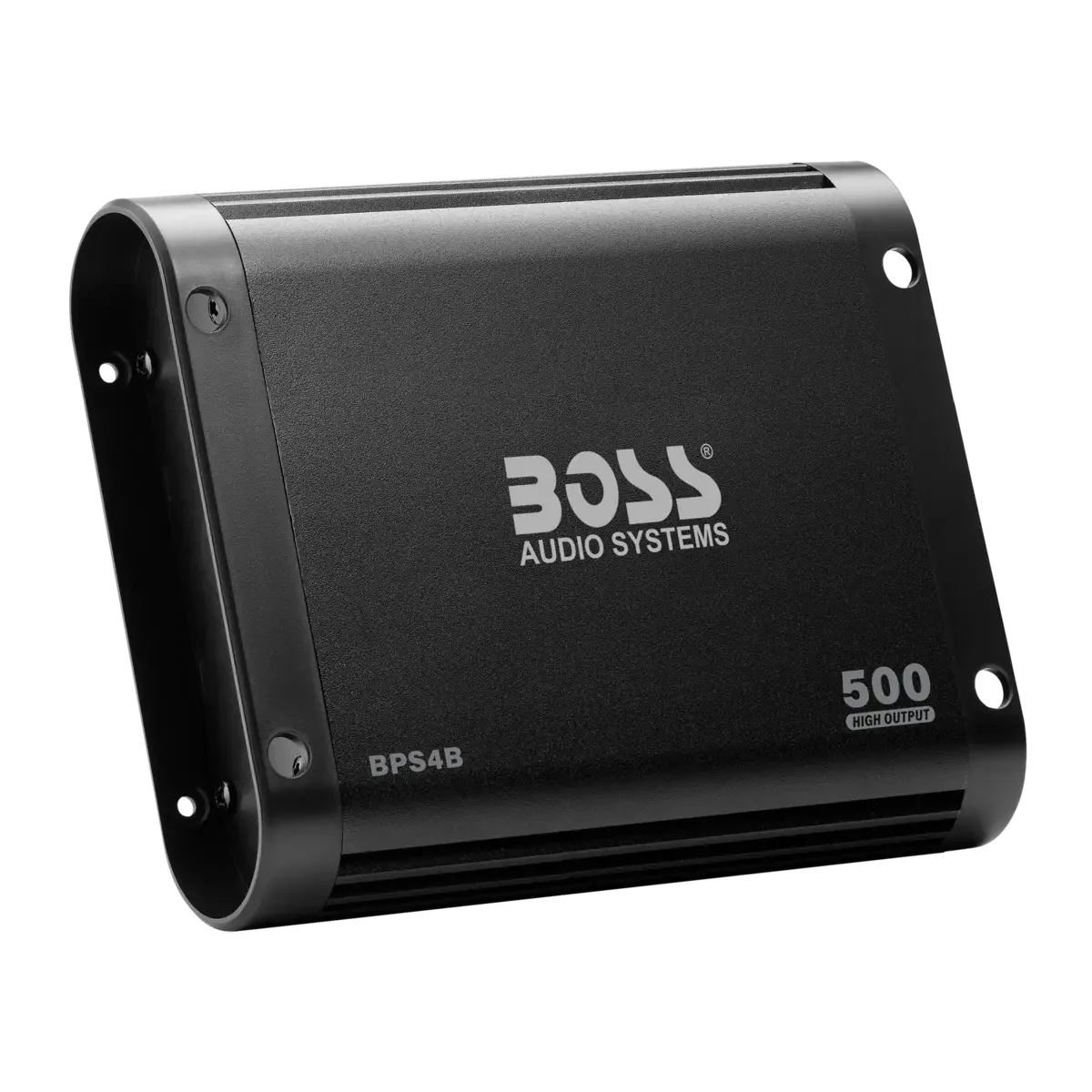

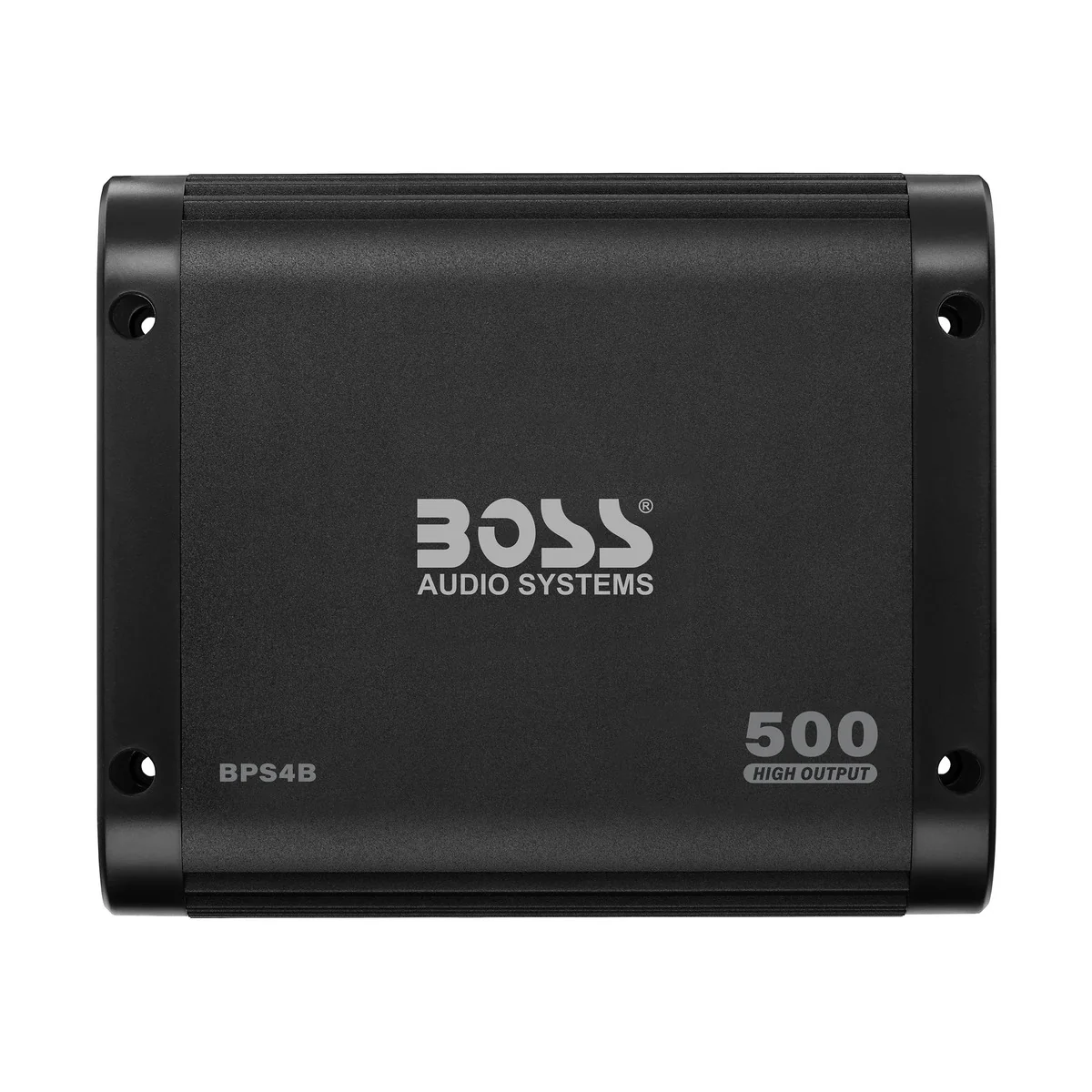

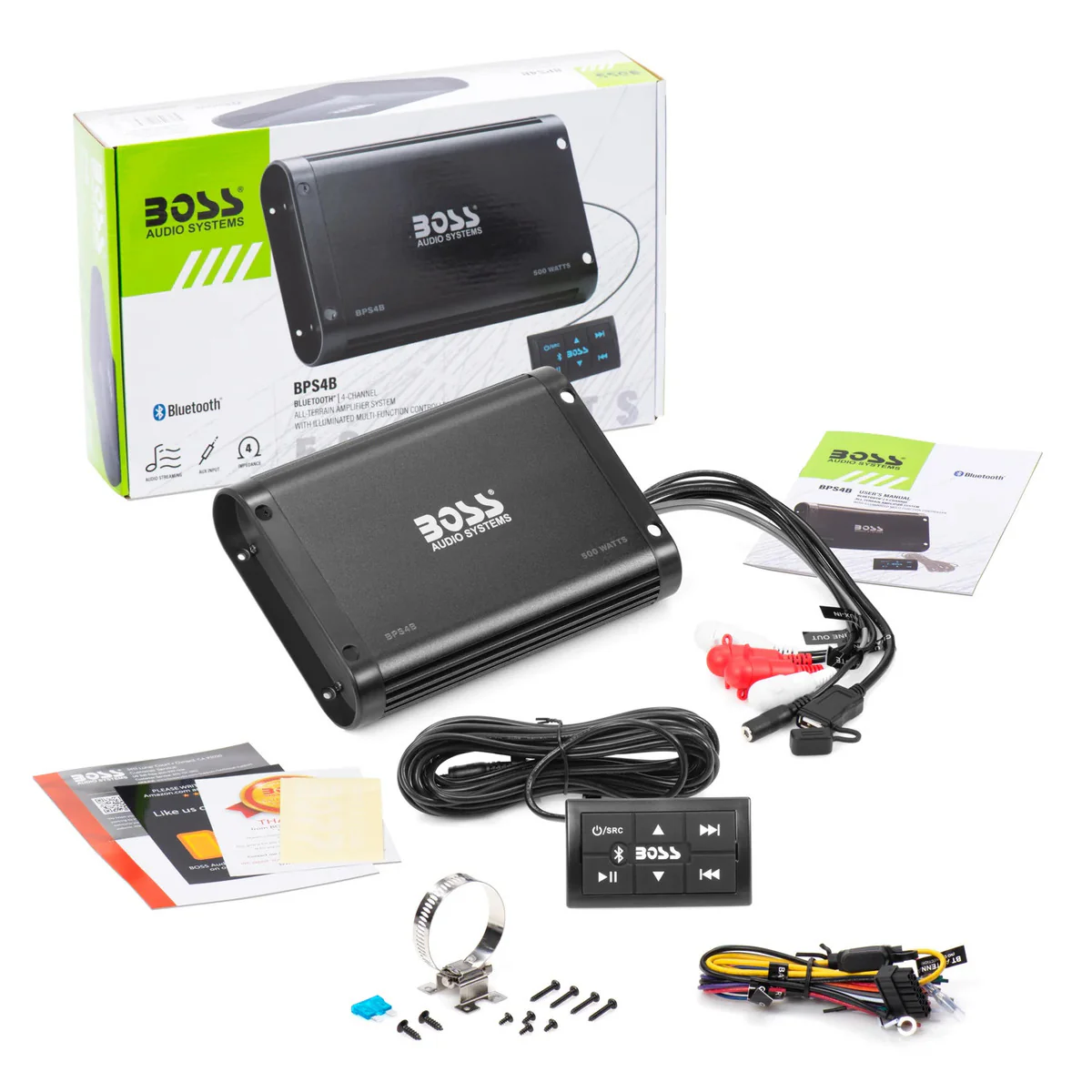

Boss Audio Bluetooth 4CH 500W Amplifier - Bps4B



4 Channel ATV UTV Bluetooth Amplifier - Weather resistant, 500 Watts, Bluetooth Multi-Function Remote, Full Range, Class A-B, 4-8 Ohm Stable, Aux-in, RCA Outputs, USB Charging



Features:

• 4 Channel
• Full-Range, Class A/B
• 4 Ohm Stable
• Slim Compact Footprint

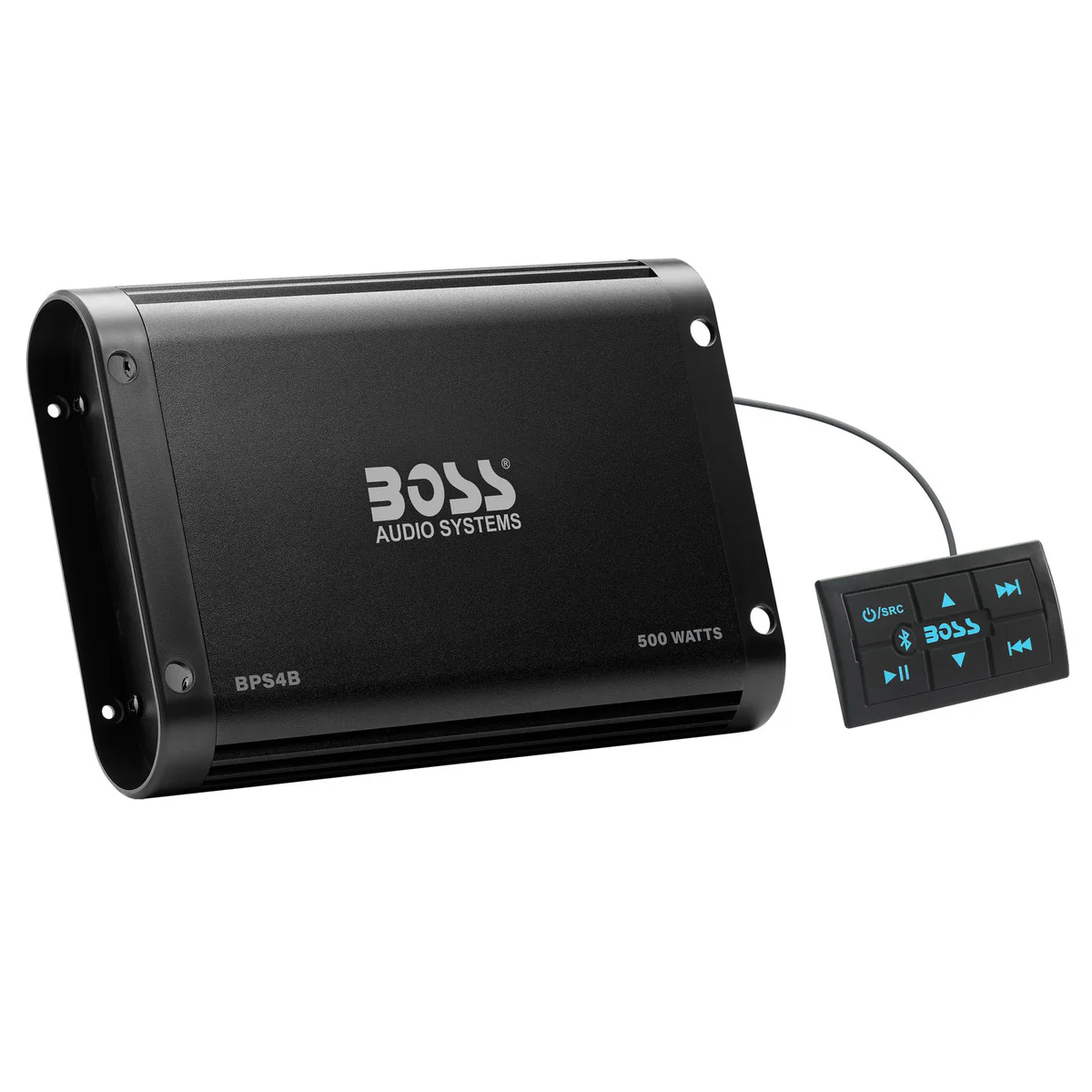

• Illuminated Multi-function Remote with Multi-Mount System: Surface Mount, or Flush Mount
• 20 ft Remote Cable
• For all 12 V Applications
• Weather Resistant
• Zero Current Draw
• Conformal Coated PCB
• Thermal, Short and Overload Protection Circuits



Installation Instruction:

• BPS4B_EN_UM.PDF



Specifications:

General Specs
Amp Topology	Full Range, Class A/B
Performance Specs
Total Power Output	500 Watts
Peak Power @ 4 Ω	125 Watts x
RMS Power @ 4 Ω	94 Watts x
Speaker Impedance	4 to 8 Ω
T.H.D. (Total Harmonic Distortion)	0.01 %
Channel Separation ≥	103 dB
Frequency Response	20 Hz to 20 " "
Connections, Controls, and Processing
RCA Inputs	2 Channel
Pre Amp Outputs	2 Channel
Remote Subwoofer Control	✔
Thermal/Overload/Short Protection	✔
Extra Features
Bluetooth Audio 4.2 A2DP Wireless Audio Streaming - play music and apps like Spotify/Pandora wirelessly

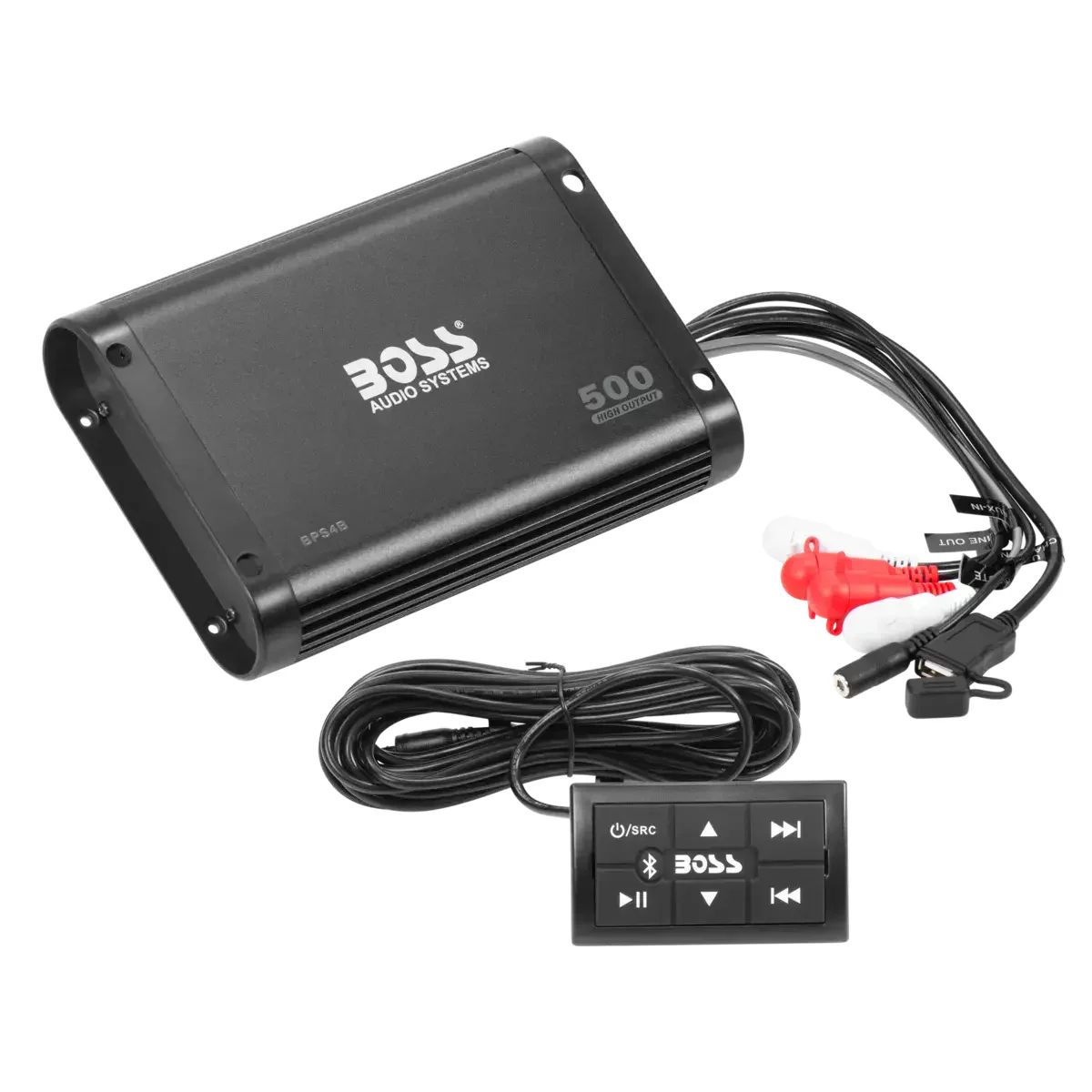

4-channel Micro Amplifier, Aux Inputs, RCA Pre-amp Outputs
USB Charging, Inline Multi-Function Remote
RCA preamp output to daisy chain multiple amps
Included RED / BLUE-backlit UV / weather resistant silicon button controller
Includes Multi-mount controller system: Includes flush mount bezel and stainless steel handle bar clamp
Compatible with optional MC900SMC surface mount Y controller kit
Compatible with MUSB35 USB /3.5mm extension kit
Weatherproof
Measurement
Length	7.5 "
Width	5.2 "
