Denali UTV Snow Plow - CF Moto

DENALI UTV Snow Plows are made to handle the toughest conditions and hold up against sand, snow, and ice. With a 65-degree attack angle and over-center design, the heavy-duty plow blade ensures snow rolls up and is thrown forward. The central mounting position of the plow kit disperses the force of impact to the sturdiest part of the UTV / SxS, preventing damage to the front end or other vehicle parts from sudden impact. Our easy-connect design makes for a quick attachment of the plow to your UTV for when the snow begins to fly. Then, when winter draws to a close, take the plow back off in a matter of minutes. The durable snowplow mount plate is specifically engineered to fit the frame of your UTV and can remain on your vehicle year-round.

Please Note: All of our DENALI Plow Systems require a winch (not included) to raise and lower the plow blade. We recommend our VIPER Elite, VIPER Max, or VIPER Midnight winches.

Kit Contents:

• UTV Snow Plow Blade - Straight
• Pushtubes
• Wearbar
• Skid Feet
• Installation Hardware and Instructions

Blade Features:

• Snow Plow Blade (19 inches scoop) and leading horizontal supports are formed from a single piece of 11 gauge steel
• Four 7-gauge ribs run the full height of the blade
• Three additional 7 gauge horizontal stabilizers support the deepest point of the blade
• 65° attack angle and over-center design ensures snow rolls up and is thrown forward
• Replaceable 7gauge steel wear bar included with every kit
• Height and angle adjustable skid feet included
• 3 Year Warranty

Pushtube Features:

• Impact Resistant Reinforced Pivot Assembly - 2 additional support bars for maximum durability & strength

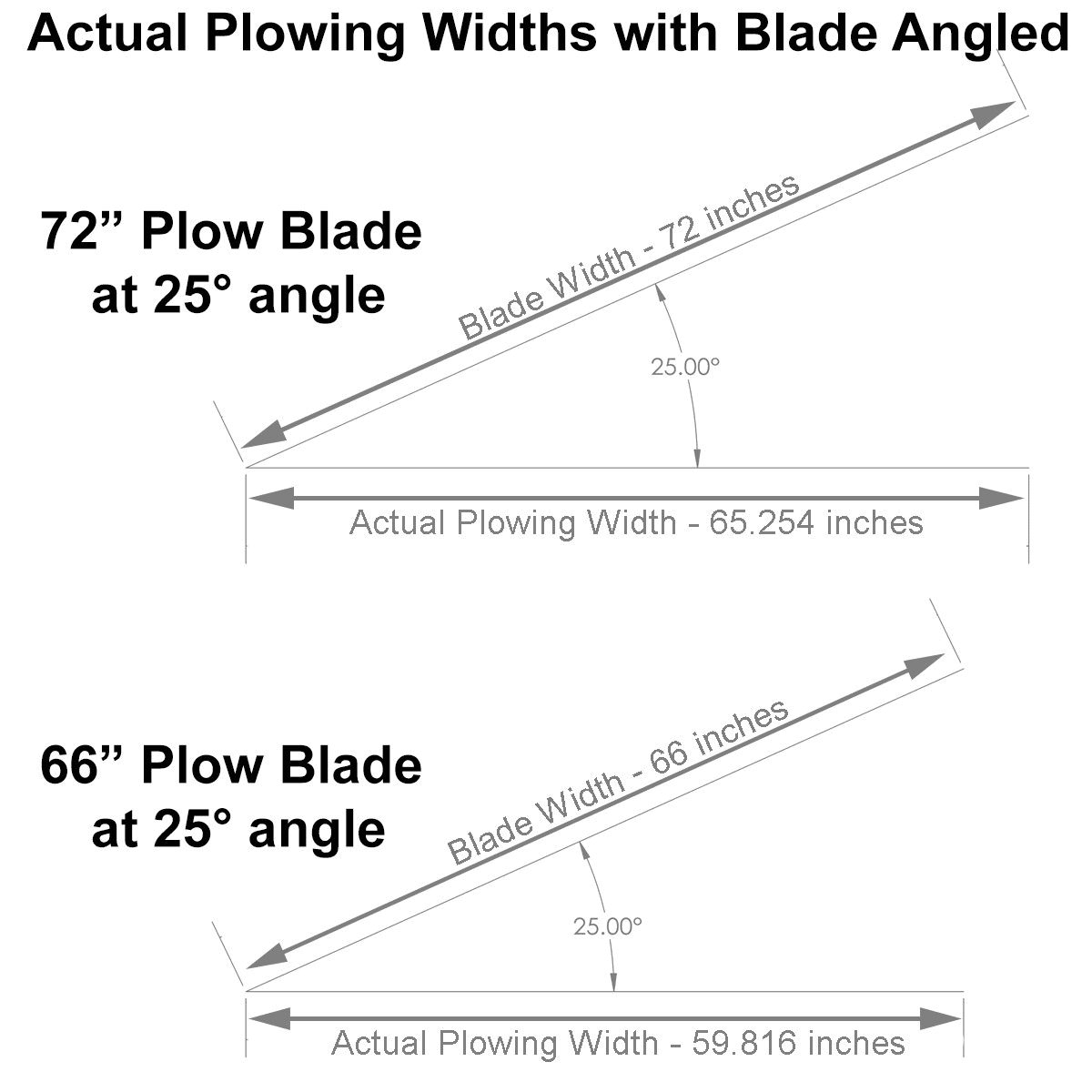

• Turn system allows you to easily position your plow in 10 different angles - 0, 12.5°, 25°
• Simple detachment system with the pull of a pin
• Structural tube steel cross bar for added lateral rigidity
• Quick Release Pins included
• 13.5 inches center to center for plow mount tabs
• Extended Push Tubes are designed to be used with SxS/UTVs that have tracks

Pushtube Lift Kits:

• Pushtube Lift Kits bolt directly to the pushtubes, providing 2 or 4 inches of lift
• Pushtube Lift Kits allow plow installation on machines with skid plates, 13”-15” and 15”-17” off the ground
• Lift Kits are for use with DENALI UTV Standard Pushtubes only (NOT Extended Pushtubes)

Mounts:

2020 CF Moto U-Force 600

2016-2020 CF Moto U-Force 500
2013-2022 CF Moto U-Force 800

2019-2020 CF Moto U-Force 1000

- 2016-2022 CF Moto Z-Force 500
- 2014-2022 CF Moto Z-Force 800/800EX
- 2018-2019 CF Moto Z-Force 1000

2021 CF Moto U-Force 1000

2021 CF Moto Z-Force 950
