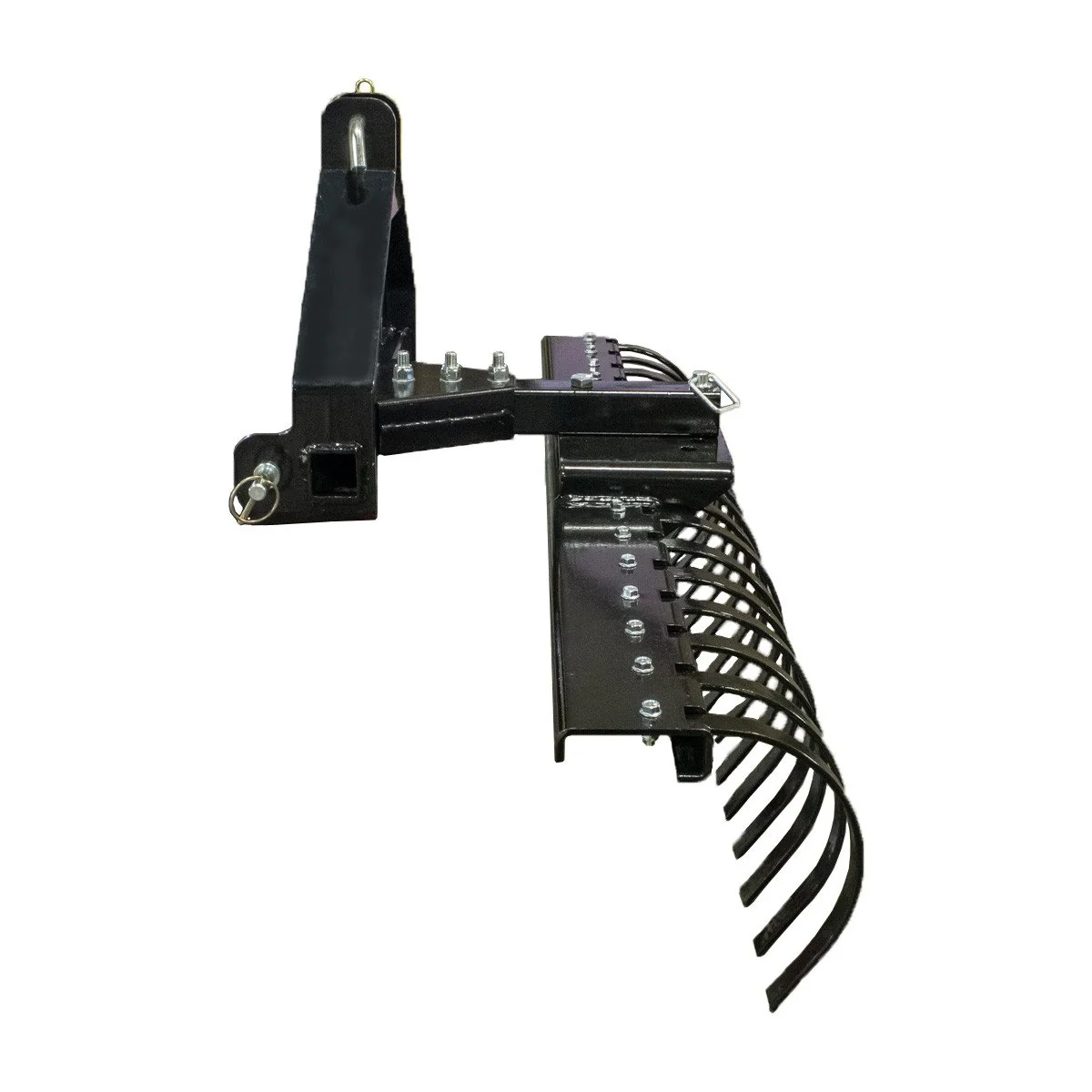

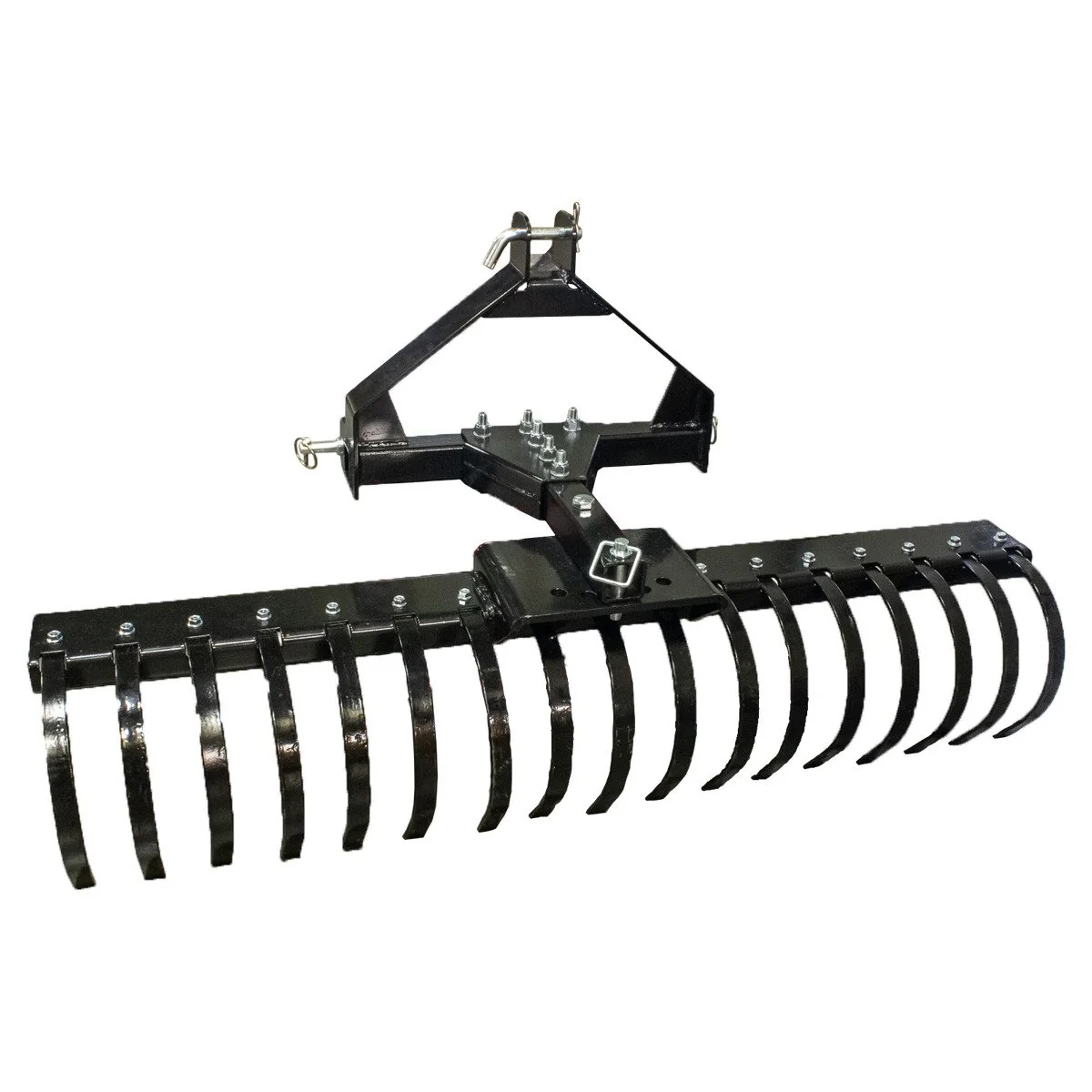

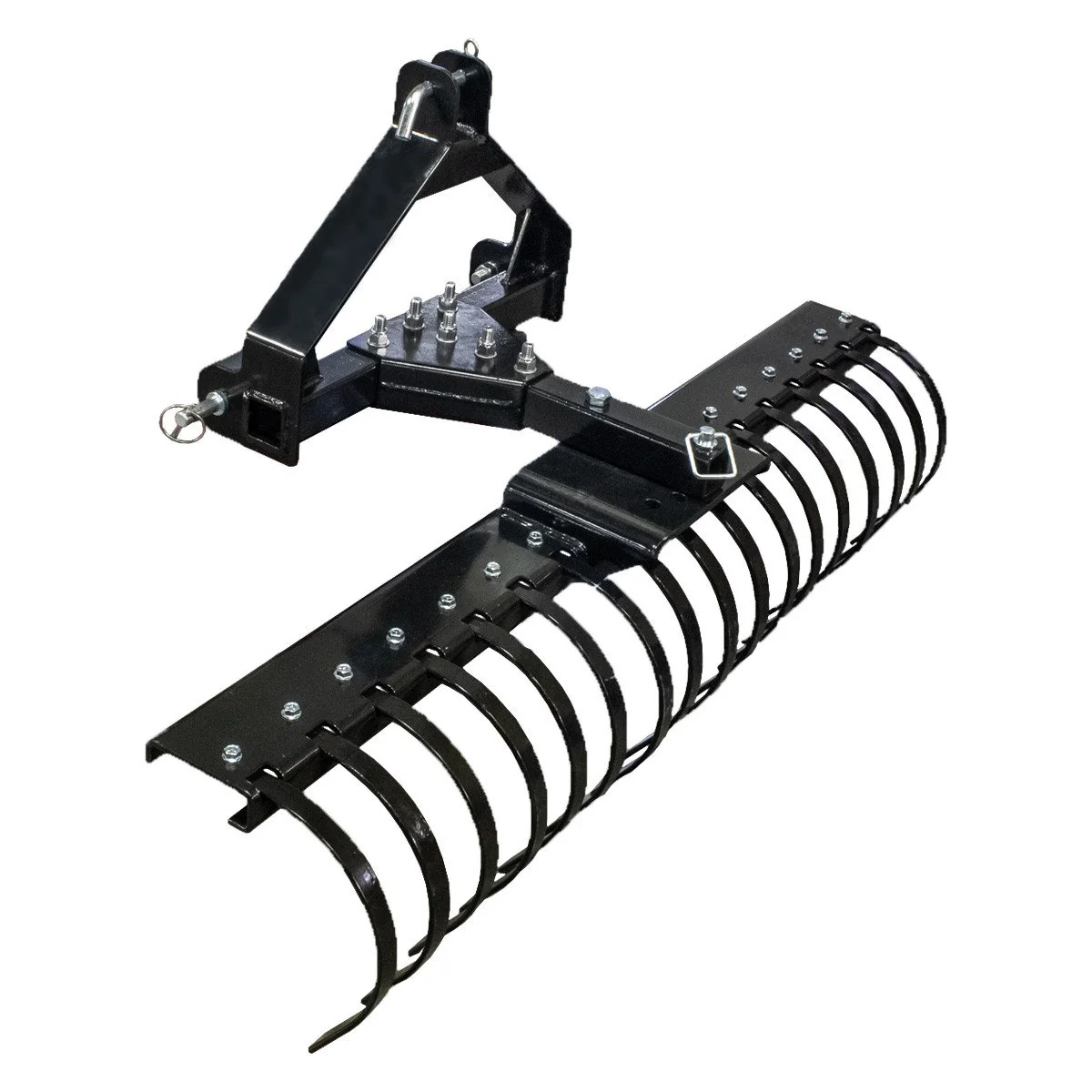

Impact Implements CAT-0 Landscape Rake

Is our best-selling implement accessory and for good reason. Use it to clear brush, rake woodland trails, prepare soil for food plots, knock down unwanted gopher mounds, rake horse arenas, and thatch lawns. A nice tool for use around the farm, in the garden and on the lawn. Truly a do it all attachment! Attaches to CAT-0 / 3 Point Attachment Systems with the included pins.

Uses:

• Garden Tractor
• Lawn Tractor
• Any vehicle with a CAT-0 Hitch / 3 Point Attachment System installed

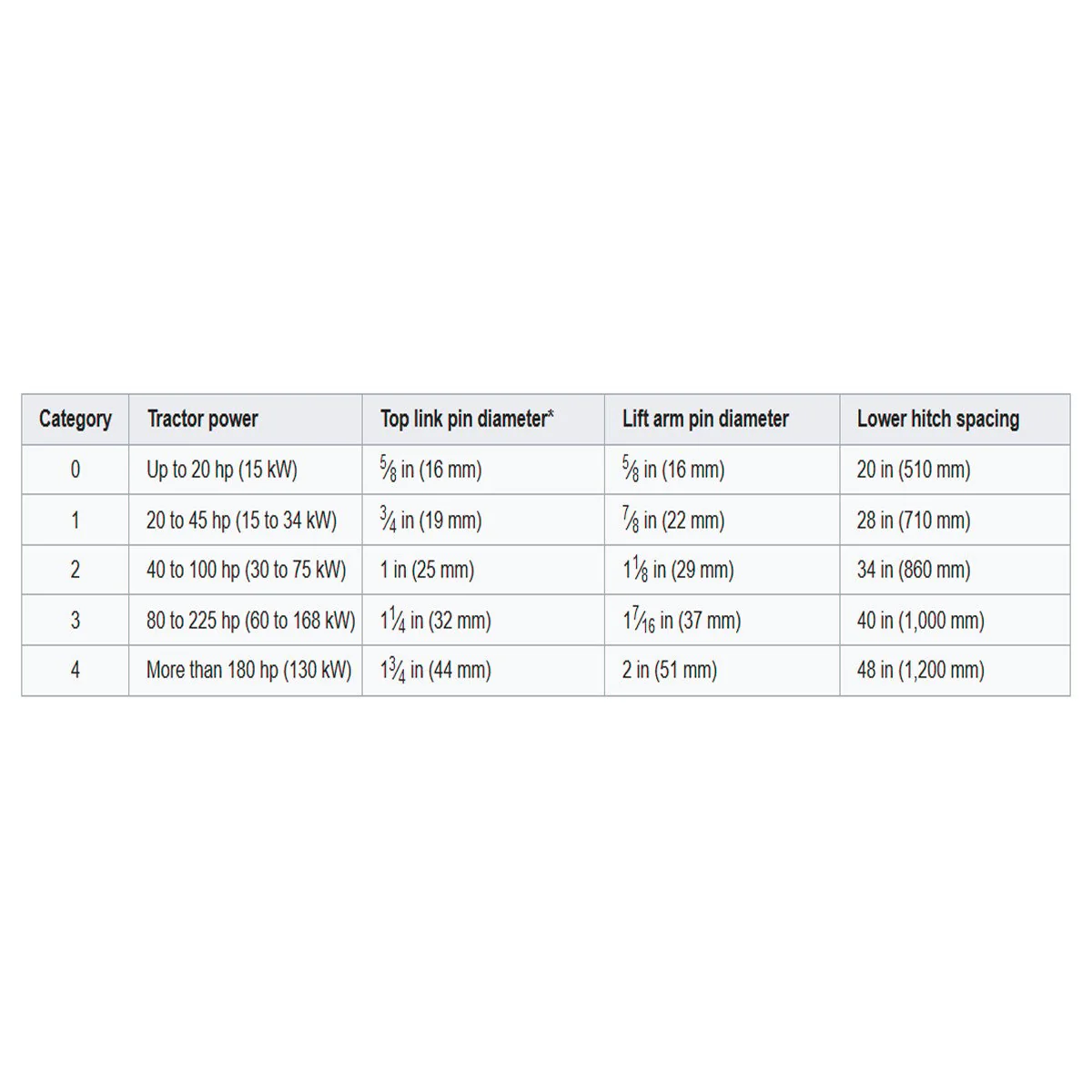

• NOTE: CAT-0 is defined as Tractor Power up to 20 hp (15 kW)

Features:

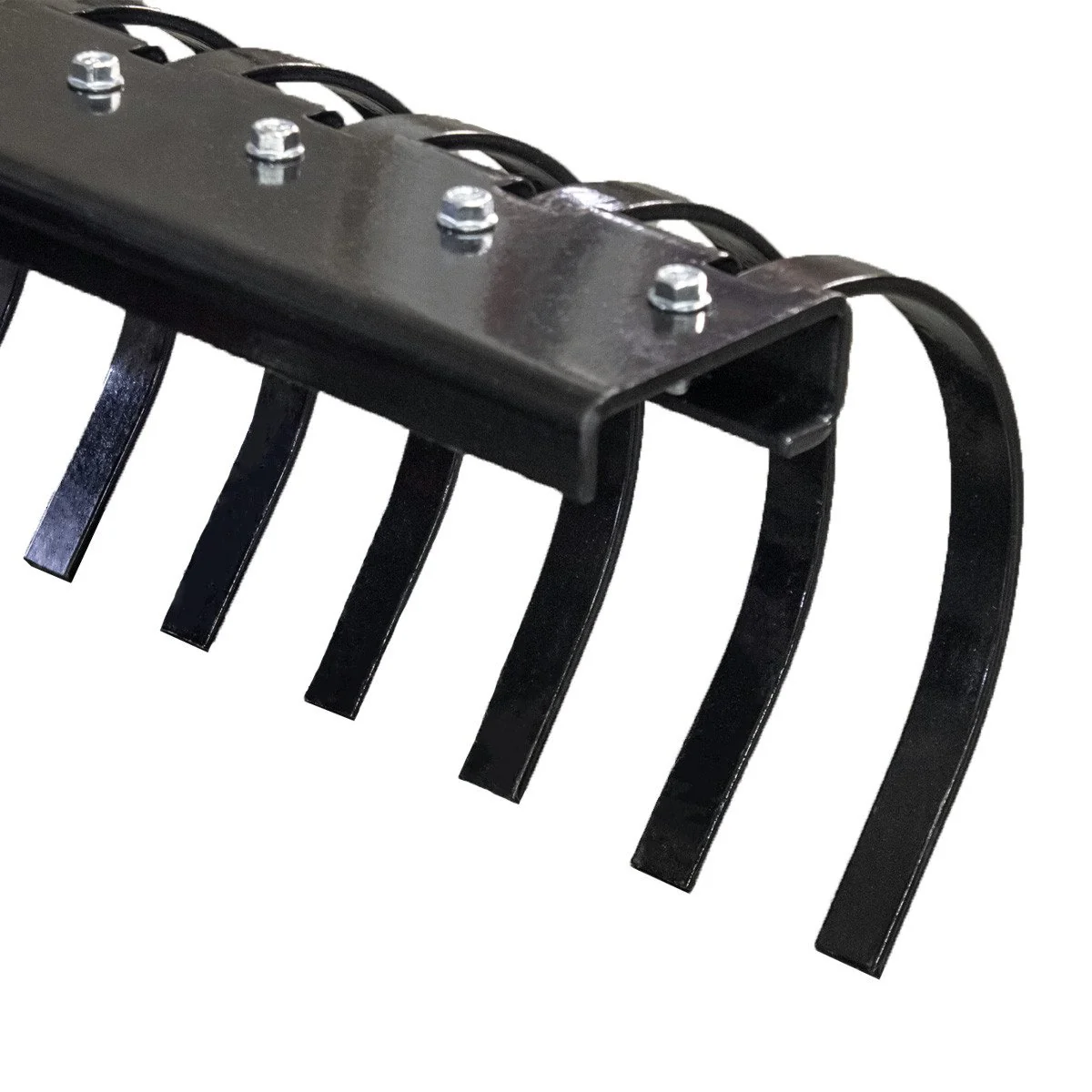

• Seventeen (17), replaceable spring steel rake tines
• Heavy duty tine stabilizer bar
• Five (5) position angle adjustment left to right
• Integrated 3-Point CAT-0 quick mount
• Requires a CAT-0 Hitch/ Three-Point Hitch (not included) installed on the machine
• Assembly Required

Specs:

• Unit: 50" (W) x 10.5" (H) x 8" (D)
• Tines: 1" (W) x 10.5" (H) x .25" (D)
• Distance between Tines: 2 1/8"
• Pin Dimensions: 5/8"
• 8-gauge 3-point frame
• Weight: 80 lbs

Instructions:

• Installation Instructions
