JBL Rally Bar XL



Features:

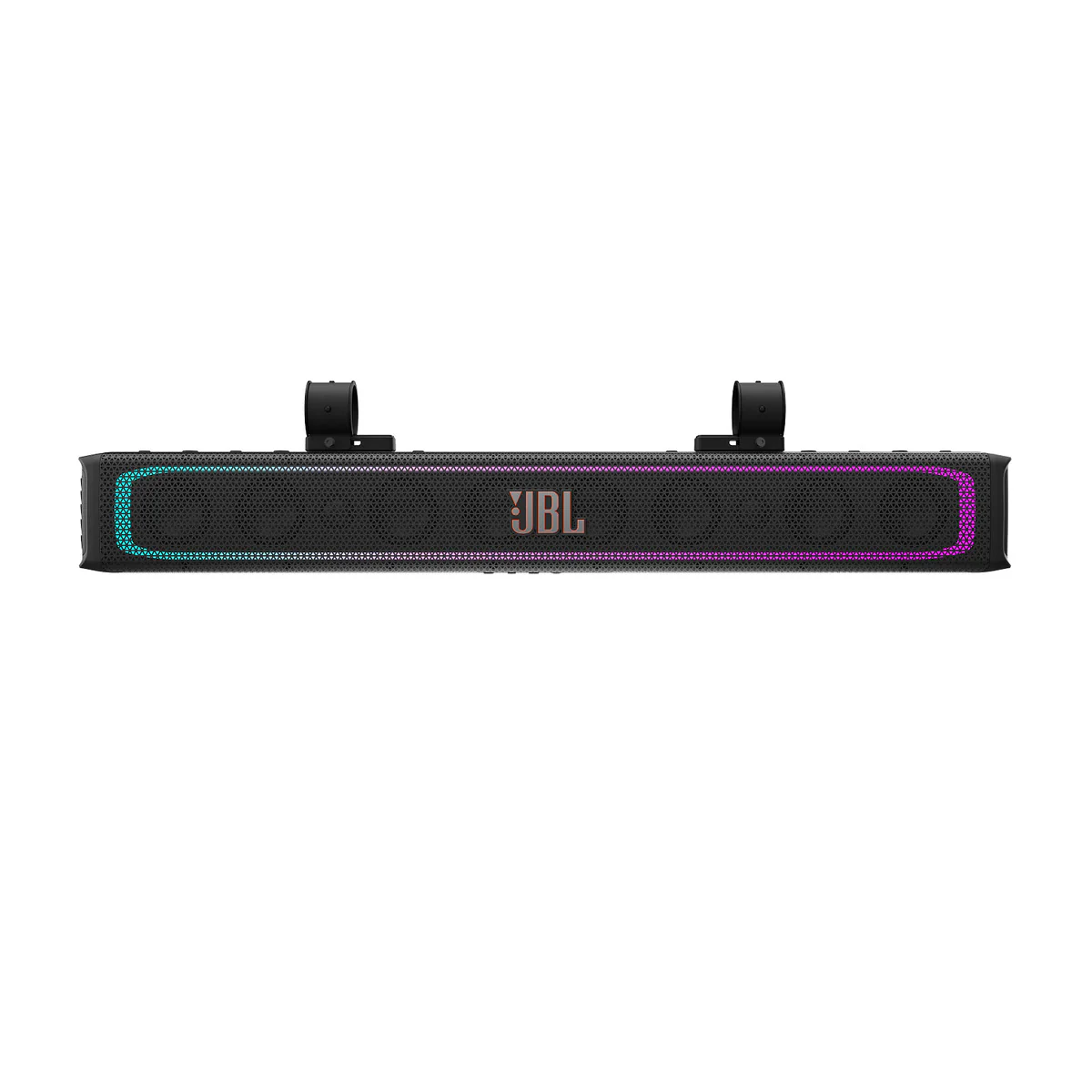

Unique Dynamic LED Lights

• Lights, color, party! Transform your off-road journey into a rock concert. Pressing the light controls on the bottom panel will Sync your music to dynamic lights patterns

300Wrms Class-D Amplifier Built-in

• The 300Wrms (THD <1%) Class- D amplifier ensures powerful, high quality JBL Original Pro Sound when you take the wheel or helm.

IP66 Rated Water and dust Resistant

• IP66 rated water resistant protects soundbar speakers from dust ingress and powerful water jets.



Specifications:

• Transducers: 8x 2.75”(70mm) woofers, 2x 1”(25mm) Tweeters, 4 x 7.2"(182.8mm) x3"(76.2mm) Racetrack Passive Radiators

• Output Power: 300WRMS, 600W PEAK (IEC60268)

• THD at Rated RMS Power: < 1%

• Voltage Range: 9.6 - 16VDC

• Quiescent Current Draw: < 0.9A

• Maximum Current Draw: 40A

• Frequency response: 45Hz-40kHz

• Signal-to-noise Ratio: > 80 dB

• Cable type: 10 AWG

• Cable length: 12 Feet (3.66m)

• Bluetooth® Version: 5.3

• Bluetooth® profile: A2DP V1.3, AVRCP V1.6

• Bluetooth® transmitter frequency range: 2400 MHz – 2483.5 MHz

• Bluetooth® transmitter power: ≤ 15 dBm (EIRP)

• Aux-In: 2Vrms(0.35Vrms - 2Vrms), 4Vrms(0.7Vrms - 4Vrms), 6Vrms(1.05Vrms - 6Vrms) (3.5 mm connector)

• Aux-Out: 2 Vrms (3.5 mm connector)

• USB format: FAT16, FAT32

• Sound bar Dimension (L x W x H): 35-11/32" x 5" x 4-5/8" (897.5 x 126.7 x 118mm)

• Sound bar Weight: 20.83 lbs (9.45 kg)

• Packaging dimensions (W x H x D): 38.2" x 9" x 7.6" (971 x 229 x 193mm)

• Gross weight: 27.5 lbs (12.52 kg)




Instructions:

• Owners Manual (English)
• Spec Sheet (English)
