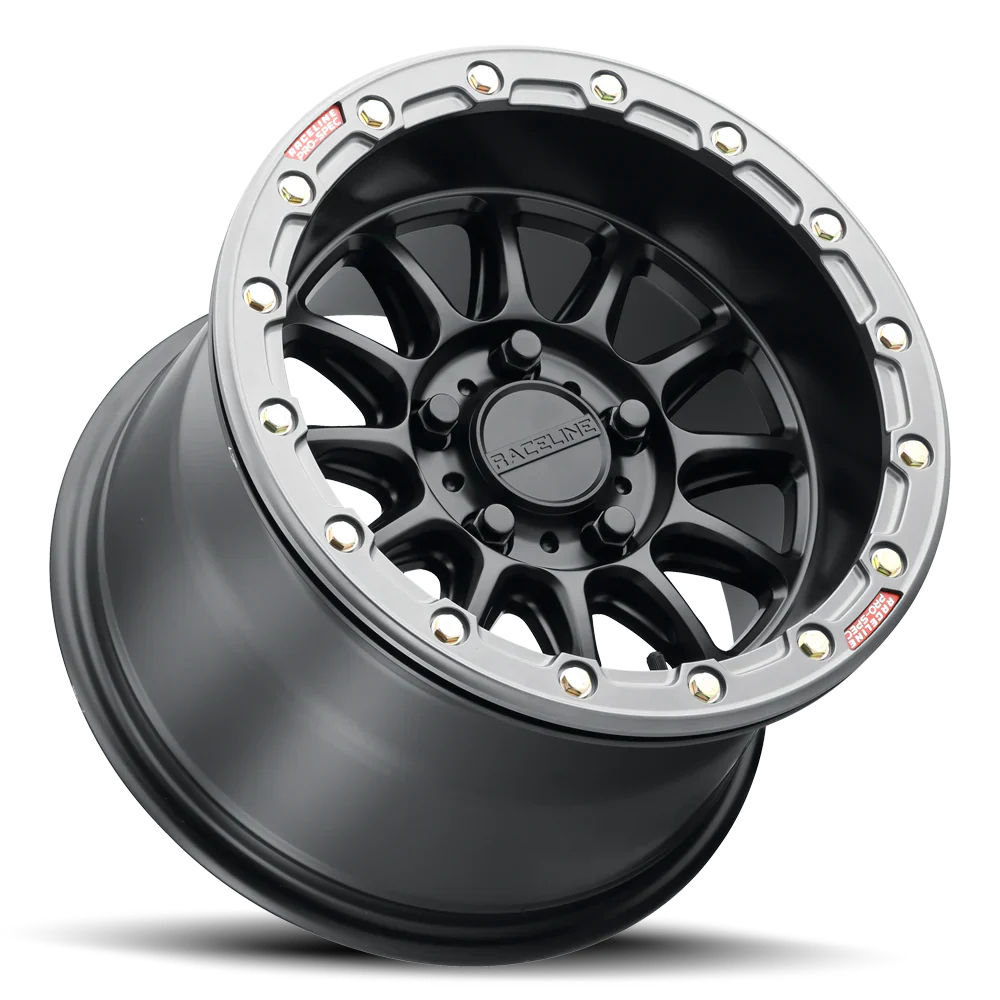

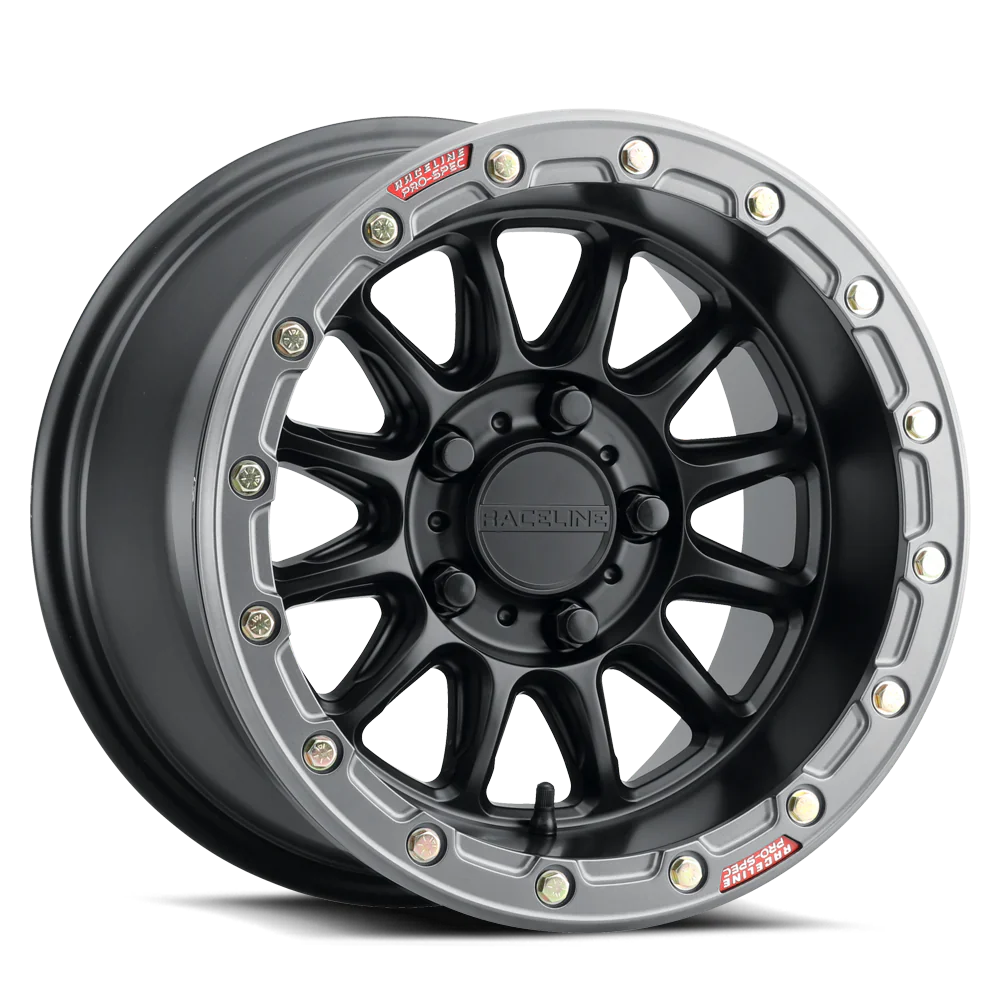

Raceline A14BG Alpha BeadLock - Black/Gunmetal

• The new Raceline A14 Alpha beadlock wheel was designed exclusively for the new Polaris RZR R in 5x114.3 bolt pattern. Its aggressive 12 scalloped spoke design with its contrasting beadlock ring gives it a true rally-inspired race look
• Constructed out of heavy-duty A356 aluminum with a forged 6061 beadlock ring with Grade 8 zinc beadlock hardware included
• Black-Out snap-in Raceline cap with contrasting red Pro Spec beadlock logos
• Available in Satin Black w/Gunmetal Beadlock Ring and Gunmetal w/Gloss Red Beadlock Ring
• Available in 15x7 and 15x10 exclusively for the Polaris Turbo R and Pro R
• Engineered to be one of the strongest wheels available
• The Official Wheel of SCORE International

Item Number	Size	Bolt Pattern (mm)	Offset	Hub Bore	Weight	Load Rating	Backspace
A14BG-51012+25	15X10	5X114.3	25	68	22.6	1650	6.38
A14BG-57012+25	15X7	5X114.3	25	68	20	1650	4.88
A14BG-57012+53	15X7	5X114.3	53	68	20	1650	5.98

Item Number	Size	Bolt Pattern (mm)	Offset	Hub Bore	Weight	Load Rating
A14BG-77012+25	17X7	5X114.3	25	68	26.65	1650
A14BG-77012+40	17X7	5X114.3	40	68	26.65	1650
A14BG-77037+25	17X7	4X137	25	110.18	26.65	1650
A14BG-77037+40	17X7	4X137	40	110.18	26.65	1650
A14BG-77056+25	17X7	4X156	25	132.5	26.65	1650
A14BG-77056+40	17X7	4X156	40	132.5	26.65	1650
