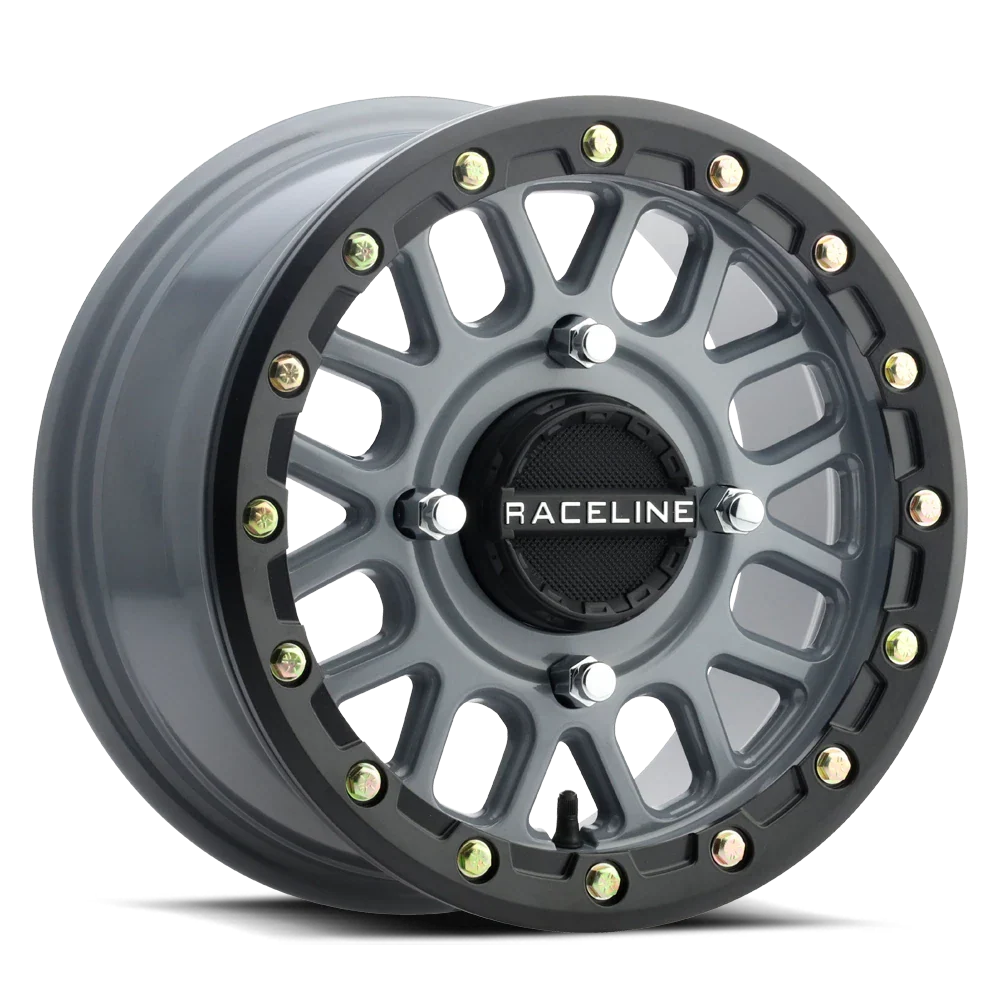

Raceline A93SG Podium Beadlock

• Iconic 8 spoke mesh style design
• Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring with US made Grade 8 zinc beadlock hardware included
• Engineered to be one of the strongest wheels available
• Available in both Satin Black and Stealth Grey finishes
• Includes a satin black snap-in cap with embossed chrome Raceline logo

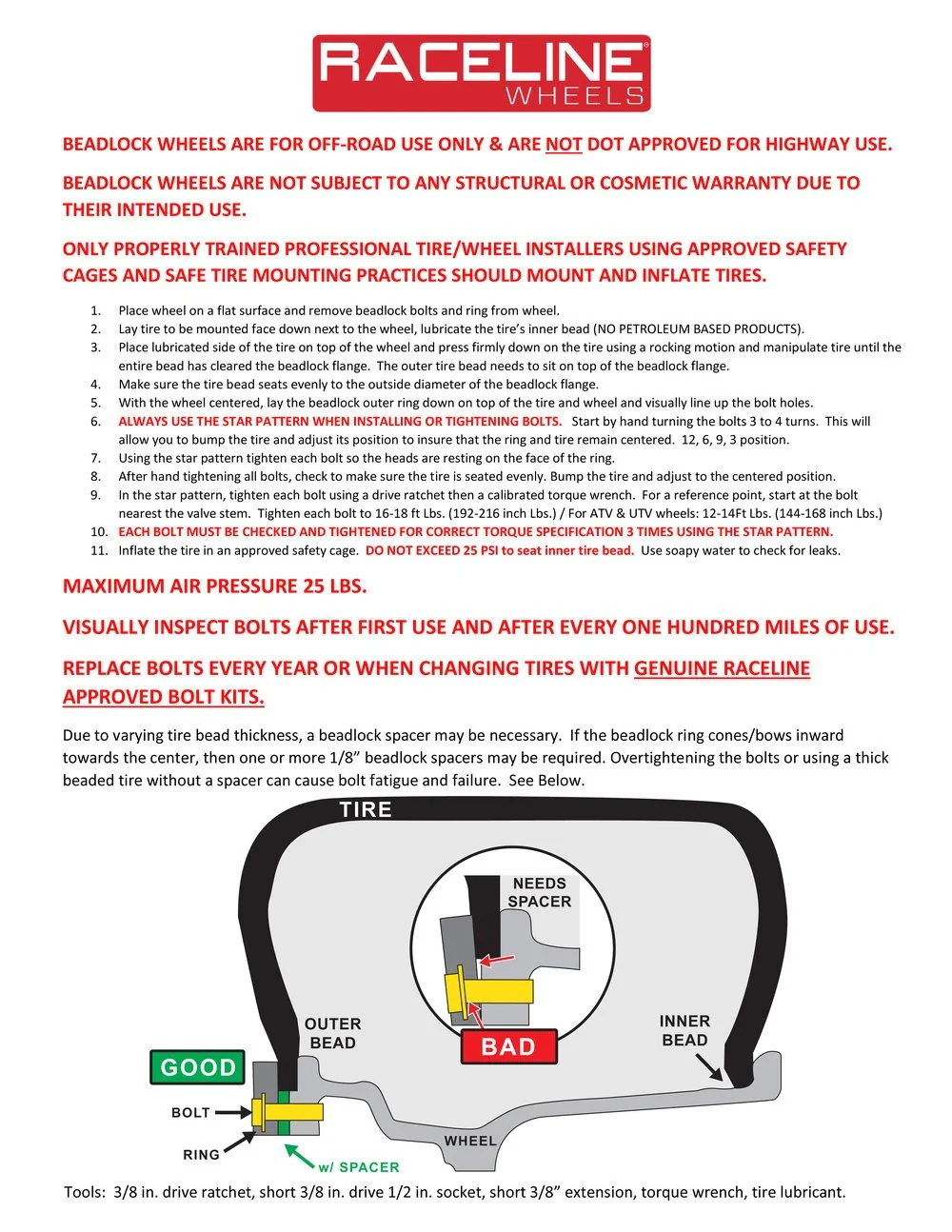

• For thicker beaded tires, Raceline beadlock ring spacers are available to ensure proper
  ring seating.
• Available in both 14” and 15” diameters for most UTV bolt patterns
• The Official Wheel of SCORE International, Texplex Motorsports Park and Texas UTV
  Championships as well as too many others to list



Item Number	Size	BOLT PATTERN (mm)	Offset	Load Rating	Center Cap	Weight
A93SG-47011+10	14X7	4X110	10	1200	CPR-A82-110	19
A93SG-47037+10	14X7	4X137	10	1200	CPR-A82-156	19
A93SG-47037+38	14X7	4X137	38	1200	CPR-A82-156	19
A93SG-47056+10	14X7	4X156	10	1200	CPR-A82-156	19
A93SG-47056+38	14X7	4X156	38	1200	CPR-A82-156	19



Item Number	Size	BOLT PATTERN (mm)	Offset	Load Rating	Center Cap	Weight
A93SG-56037+40	15X6	4X137	40	1200	CPR-A82-156	21
A93SG-56056+40	15X6	4X156	40	1200	CPR-A82-156	21
