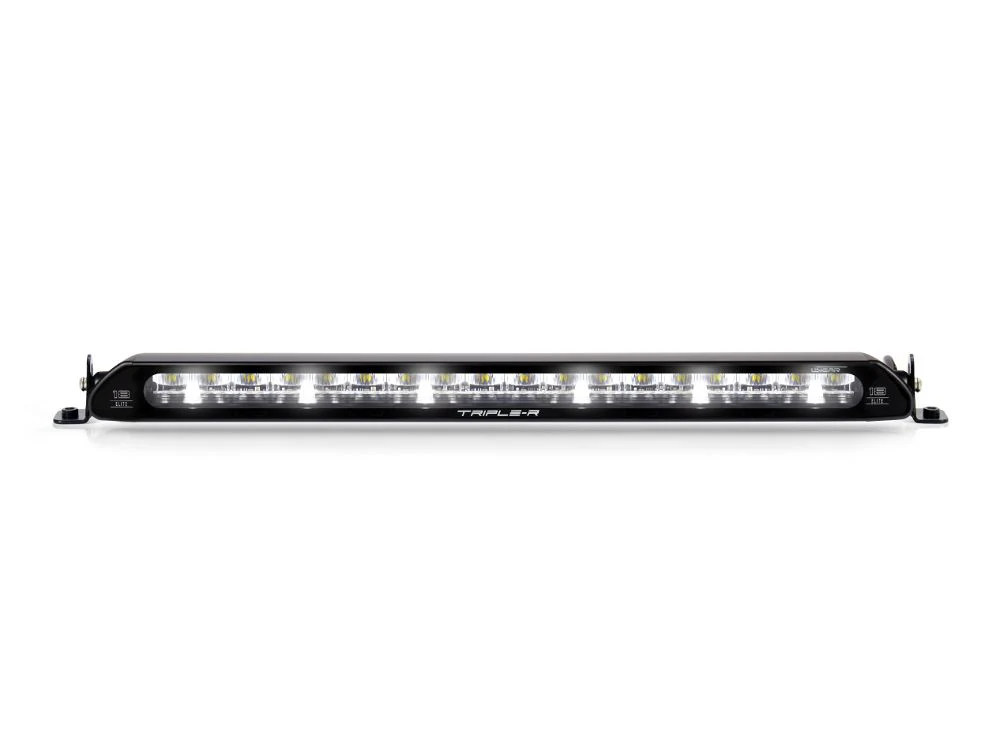

Triple R Lighting Linear-18 Elite

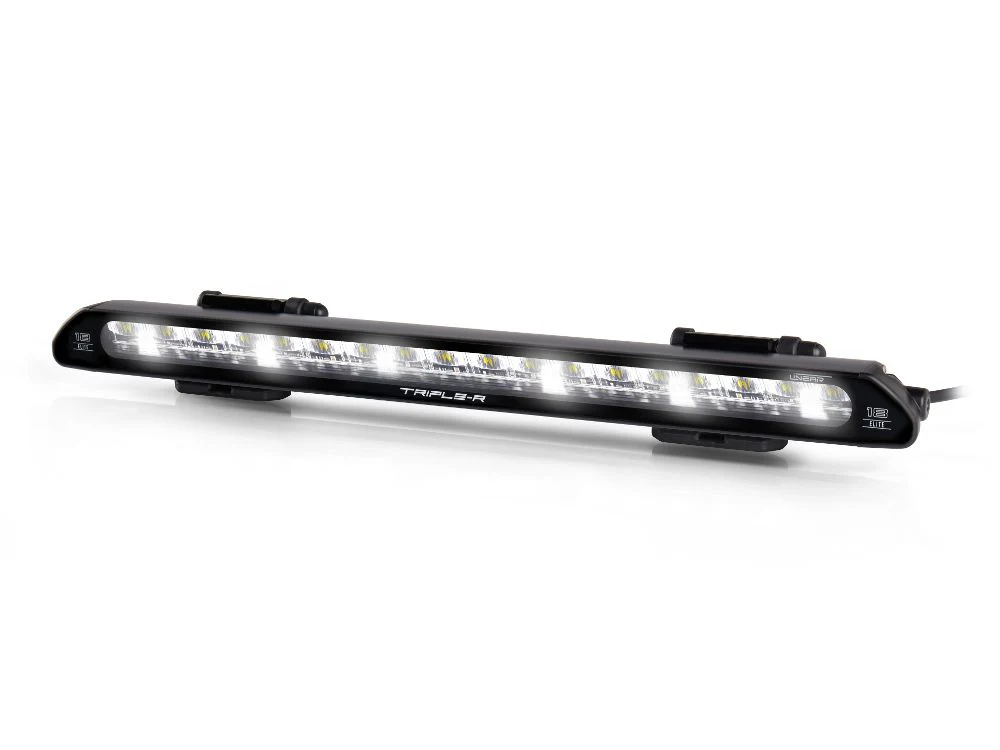

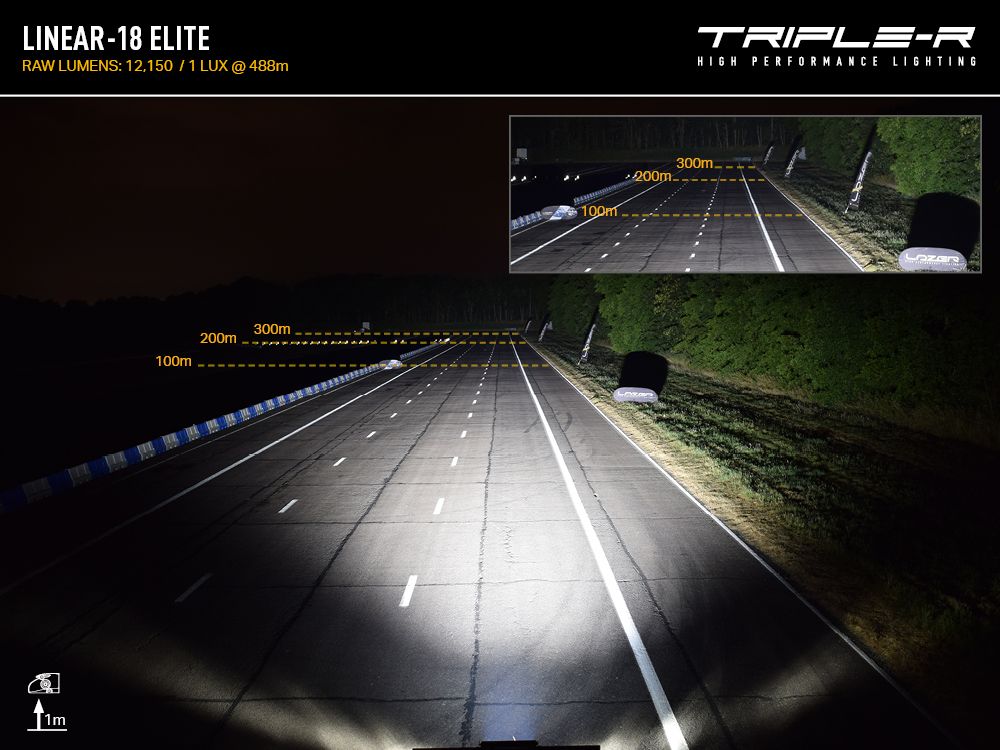

The Linear-18 Elite utilizes a combination of 36x highly efficient 3W LEDs which combine to deliver 12,150 raw lumens, and 1 lux to just under 488m. Impressive considering the lamp weighs 2.4lbs and has power consumption of 126W. Vacuum-metallized high-reflectivity optics are carefully designed and engineered in-house utilizing the latest CAD design and light simulation software, to deliver optimum light distribution in a drive beam pattern (64 degrees spread). The color temperature of the light at 5000K is carefully selected for its natural appearance proven to reduce driver fatigue. Integrated Daytime Running Lights provide a unique appearance to the light.

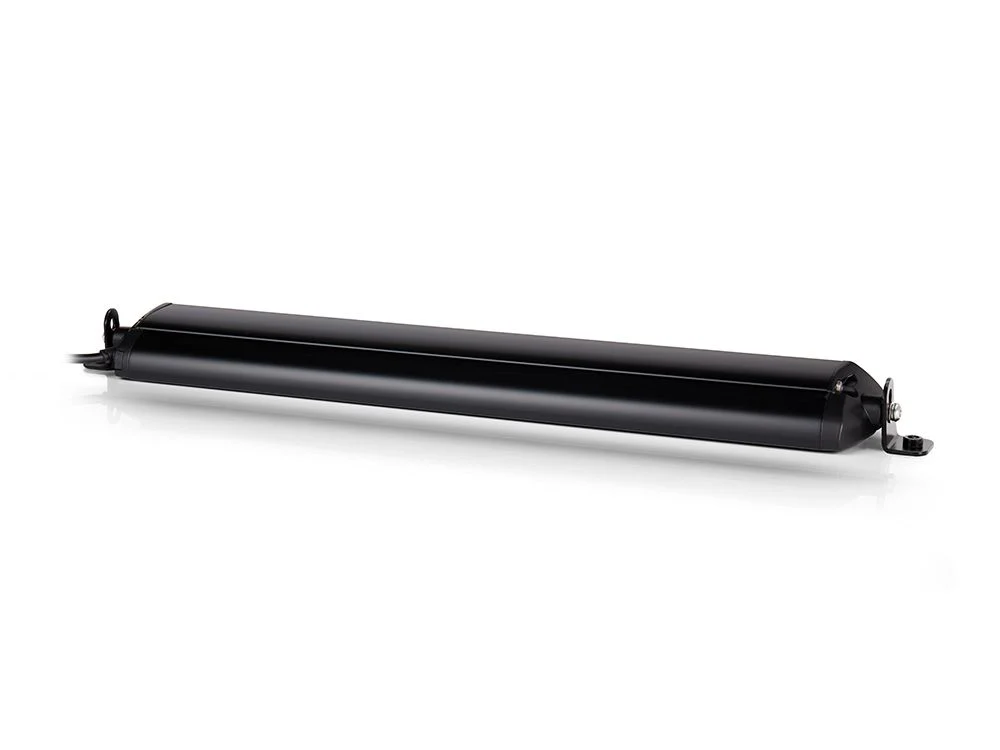

At 21” in length and under 2” in height, the Linear-18 Elite is easy to fit in tight and confined spaces, while the clean design of the Linear range provides for a premium look to impress on any vehicle. Supplied stainless steel side brackets allow flexibility in the mounting location and position, while anti-theft fasteners means the light will stay safe and secure.

Like all Triple-R light bars the Linear range benefits from a comprehensive 5 year warranty, and a lifetime guarantee on the polycarbonate lens. Dynamic control modulation, which regulates the light output considering any extreme environmental and thermal conditions of the lamp, helps protect the electronic components from heat damage, and ensures the light performs as well today as it will in many years’ time.

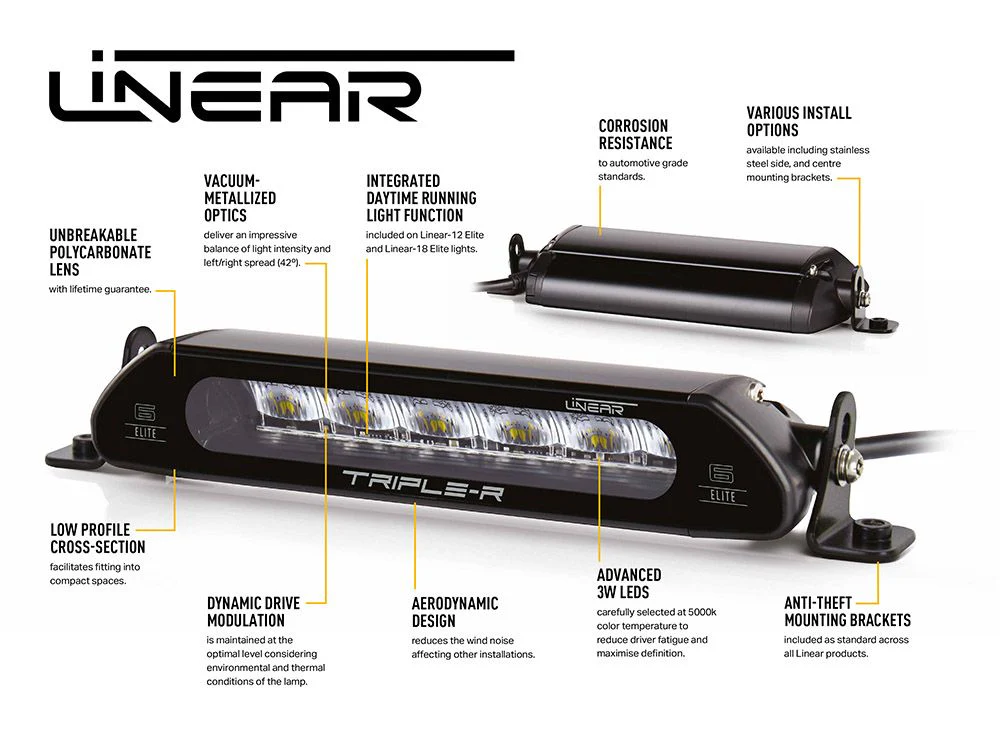

Features:

• Combination of highly efficient 3W ‘premium bin’ LEDs
• Integrated Daytime Running Lights
• Vacuum-metallized optics deliver wide spread of light
• Flexible mounting options – anti-theft mounting brackets included
• Sleek, low profile design facilitates installation
• Electronic thermal management
• Pressure equalization through GoreTex Breather technology
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• IP68 watertight
• 5 year warranty
• Supplied with male/female connectors (pre-wired)
• Designed & manufactured in UK



Technical Specifications:

Based on: Linear-18 Elite (with backlight).

Voltage Range	10-32V
LED Life	50,000 hours
IP Rating	IP68
Weight	2.4 lbs
HIGH BEAM FUNCTION
Total Luminous Flux	12150 Lm
Total Driver 'FOV' Flux †	8651 Lm
Color Temperature	5000K
Number of High Output LEDs	36
Power Consumption	126 Watts
Current Draw (at 14.4V)	8.8 Amps

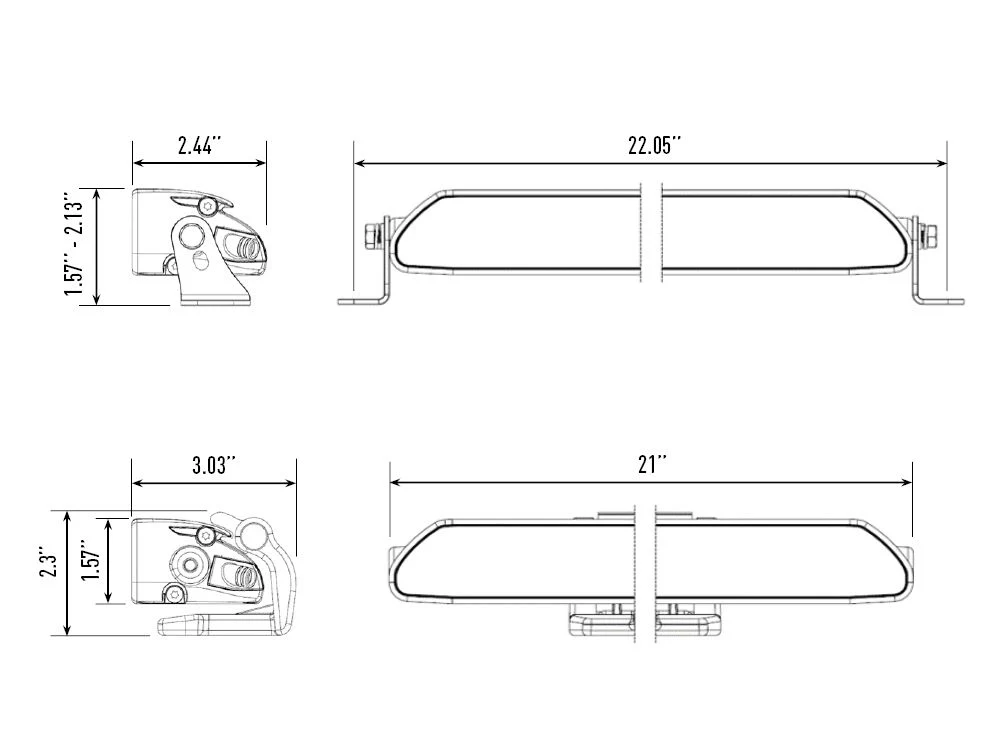

DIMENSIONS
Width	20.9"
Depth	2.44"
Height	1.57"

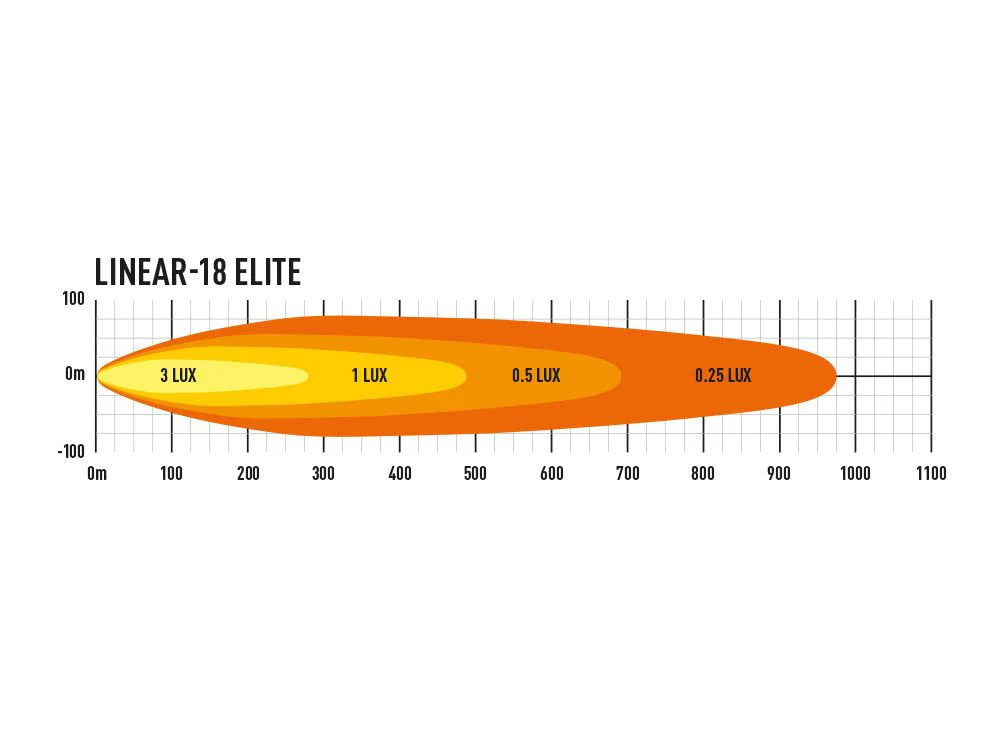

PHOTOMETRIC DATA

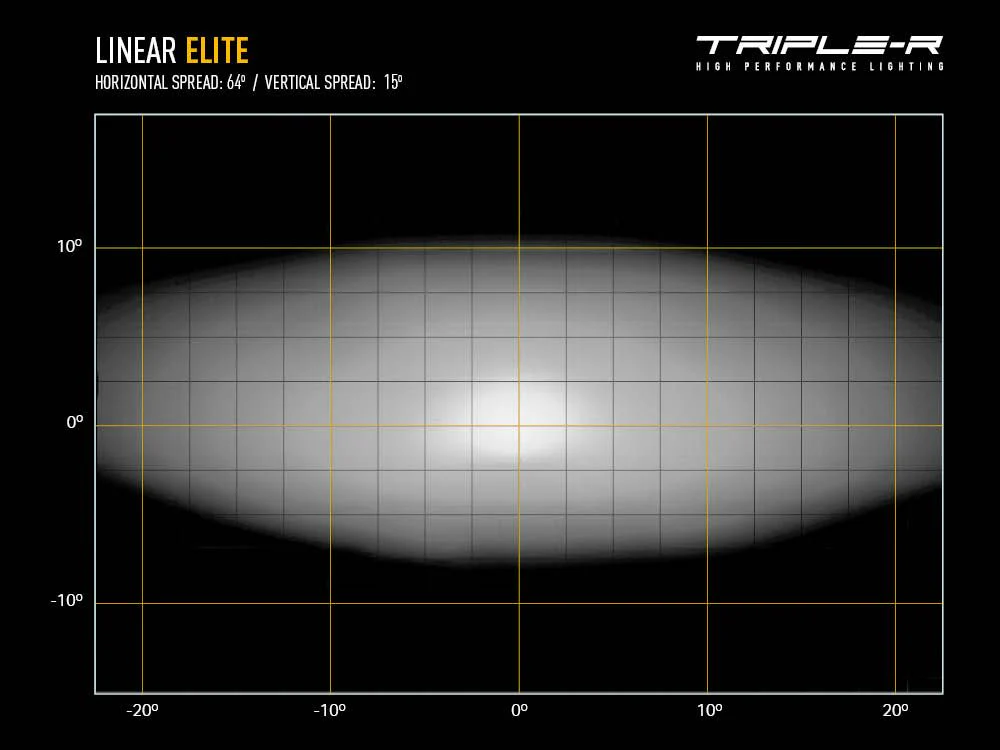

Horizontal Beam Angle	64 degrees
0.25 lx Line	975 metres
0.5 lx Line	690 metres
1 lx Line	488 metres
3 lx Line	282 metres



† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.



What's Included:

• 1x Linear-18 Elite LED Light
• 1x Anti-Theft Side Mount Kit (1127K)
• 1x Fitting Instructions




Instructions:

• Linear-18 Elite (with Backlight) - Sales Information Card (3.85 MB)
• Lamp Instructions - Triple-R-Lights (2.03 MB)
