Triple R Lighting Linear-6 Elite
Triple R Lighting Linear-6 Elite
Ā
The Linear-6 Elite utilizes a combination of 12x highly efficient 3W LEDs which combine to deliver 4,050 raw lumens, and 1 lux to over 280m. Impressive considering the lamp weighs a little over 1lbs and has power consumption of just 42W. Vacuum-metallized high-reflectivity optics are carefully designed and engineered in-house utilizing the latest CAD design and light simulation software, to deliver optimum light distribution in a drive beam pattern (64 degrees spread). The color temperature of the light at 5000K is carefully selected for its natural appearance proven to reduce driver fatigue.
At a little over 9ā in length and under 2ā in height, the Linear-6 Elite is easy to fit in tight and confined spaces, while the clean design of the Linear range provides for a premium look to impress on any vehicle. Supplied stainless steel side brackets allow flexibility in the mounting location and position, while stainless steel anti-theft fasteners means the light will stay safe and secure.
Like all Triple-R light bars the Linear range benefits from a comprehensive 5 year warranty, and a lifetime guarantee on the polycarbonate lens. Dynamic control modulation, which regulates the light output considering any extreme environmental and thermal conditions of the lamp, helps protect the electronic components from heat damage, and ensures the light performs as well today as it will in many yearsā time.
Ā

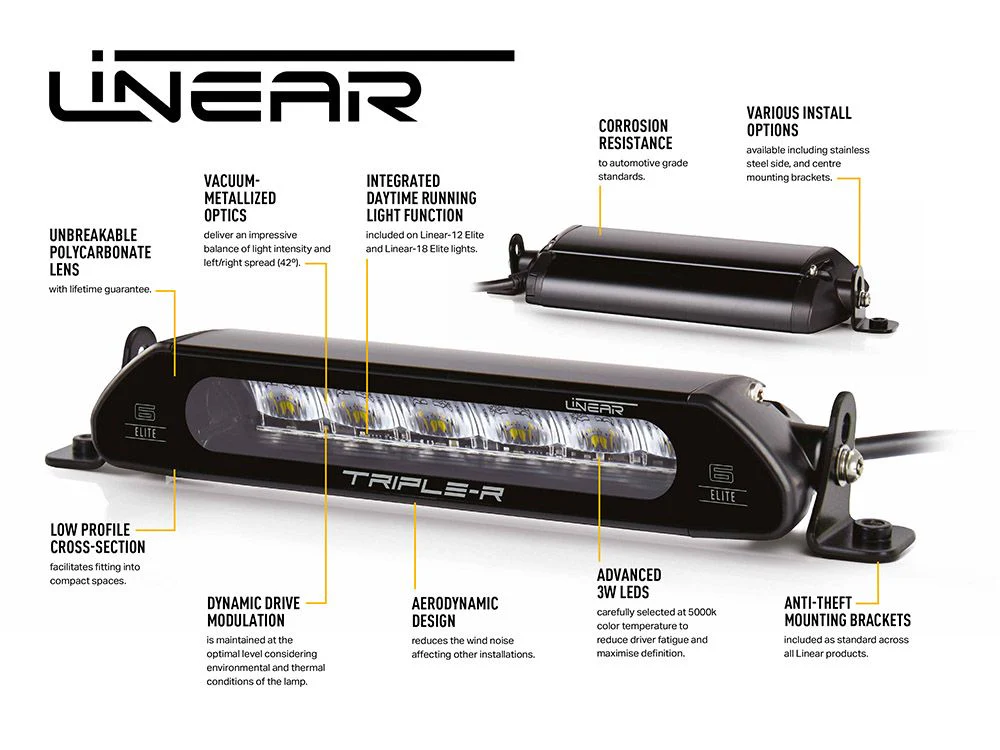

Features:
- Combination of highly efficient 3W āpremium binā LEDs
- Vacuum-metallized optics deliver wide spread of light
- Flexible mounting options ā anti-theft mounting brackets included
- Sleek, low profile design facilitates installation
- Electronic thermal management
- Pressure equalization through GoreTex Breather technology
- āUnbreakableā polycarbonate lens with hardcoat lacquer
- IP68 watertight
- 5 year warranty
- Supplied with male/female connectors (pre-wired)
- Designed & manufactured in UK
Ā
Technical Specifications:
Based on: 1x Linear-6 Elite.
| Voltage Range | 10-32V |
| LED Life | 50,000 hours |
| IP Rating | IP68 |
| Weight | 1.1 lbs |
| HIGH BEAM FUNCTION | Ā |
| Total Luminous Flux | 4050 Lm |
| Total Driver 'FOV' FluxĀ ā | 2884 Lm |
| Color Temperature | 5000K |
| Number of High Output LEDs | 12 |
| Power Consumption | 42 Watts |
| Current Draw (at 14.4V) | 2.9 Amps |

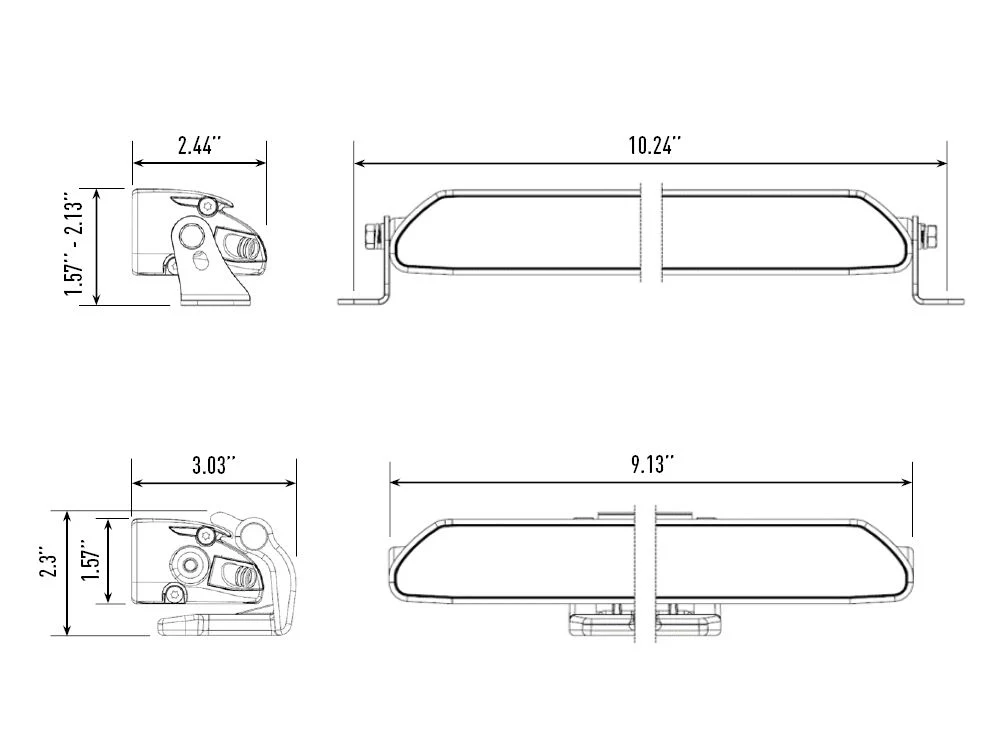

| DIMENSIONS | Ā |
| Width | 9.13" |
| Depth | 2.44" |
| Height | 1.57" |

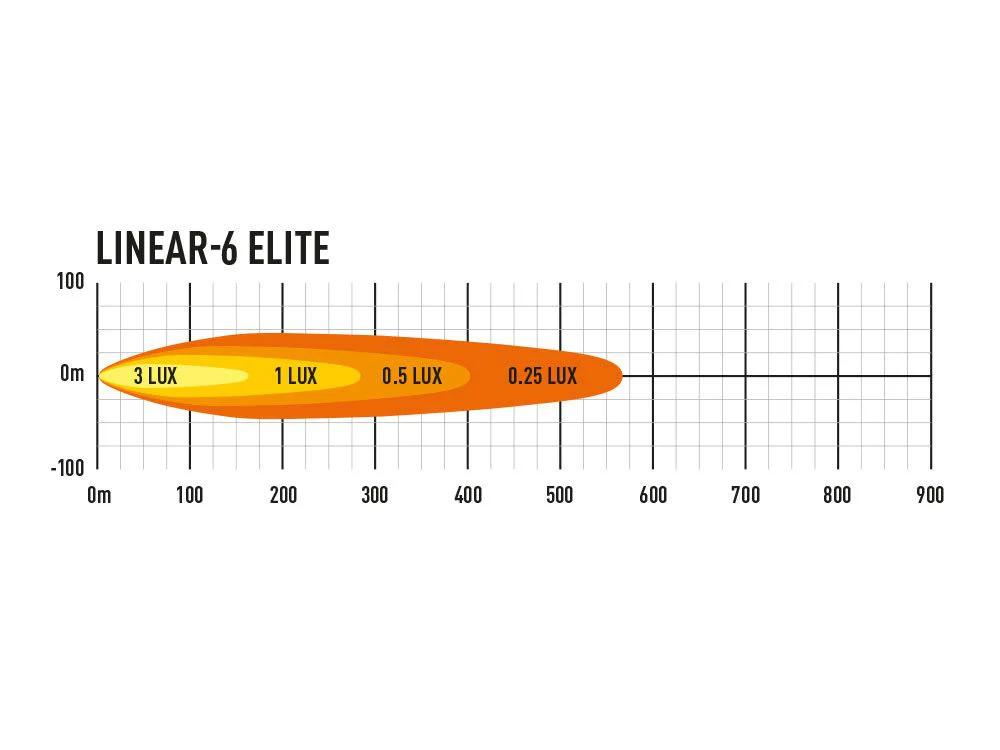

| PHOTOMETRIC DATA | Ā |

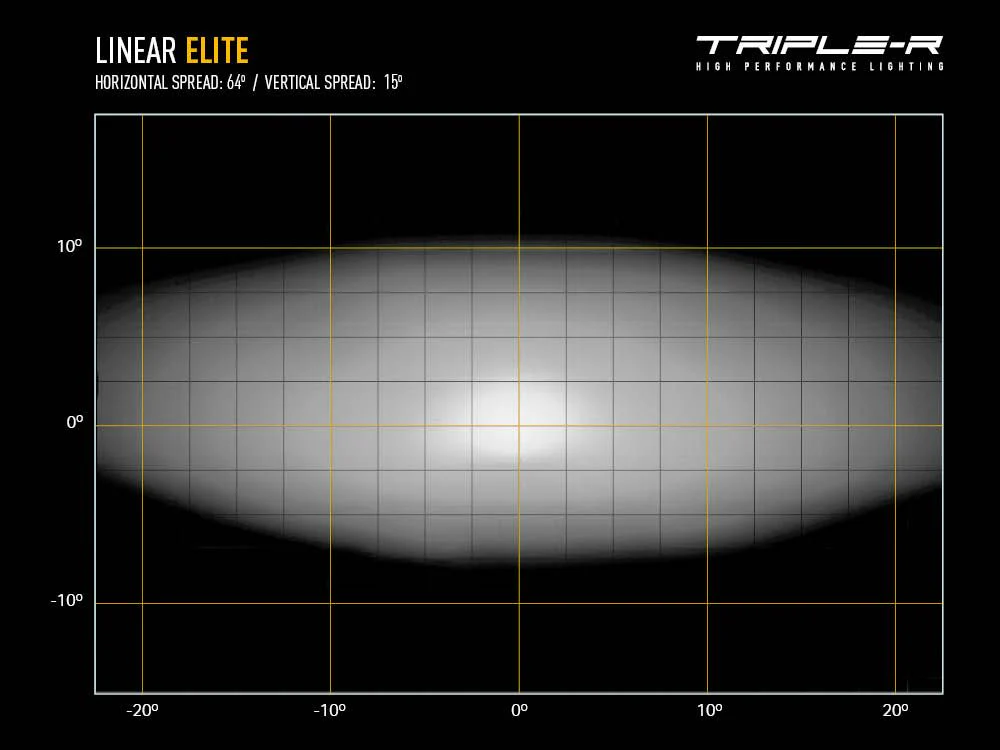

| Horizontal Beam Angle | 64 degrees |
| 0.25 lx Line | 563 metres |
| 0.5 lx Line | 398 metres |
| 1 lx Line | 282 metres |
| 3 lx Line | 163 metres |
Ā
ā Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information āĀ click here.
Ā
What's Included:
- 1x Linear-6 Elite LED Light
- 1x Anti-Theft Side Mount Kit (1127K)
- 1x Fitting Instructions
Ā
Instructions:
video Instructions:
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Triple R Lighting Linear-6 Elite
Triple R Lighting Linear-6 Elite
Triple R Lighting Linear-6 Elite
Ā
The Linear-6 Elite utilizes a combination of 12x highly efficient 3W LEDs which combine to deliver 4,050 raw lumens, and 1 lux to over 280m. Impressive considering the lamp weighs a little over 1lbs and has power consumption of just 42W. Vacuum-metallized high-reflectivity optics are carefully designed and engineered in-house utilizing the latest CAD design and light simulation software, to deliver optimum light distribution in a drive beam pattern (64 degrees spread). The color temperature of the light at 5000K is carefully selected for its natural appearance proven to reduce driver fatigue.
At a little over 9ā in length and under 2ā in height, the Linear-6 Elite is easy to fit in tight and confined spaces, while the clean design of the Linear range provides for a premium look to impress on any vehicle. Supplied stainless steel side brackets allow flexibility in the mounting location and position, while stainless steel anti-theft fasteners means the light will stay safe and secure.
Like all Triple-R light bars the Linear range benefits from a comprehensive 5 year warranty, and a lifetime guarantee on the polycarbonate lens. Dynamic control modulation, which regulates the light output considering any extreme environmental and thermal conditions of the lamp, helps protect the electronic components from heat damage, and ensures the light performs as well today as it will in many yearsā time.
Ā
Features:
- Combination of highly efficient 3W āpremium binā LEDs
- Vacuum-metallized optics deliver wide spread of light
- Flexible mounting options ā anti-theft mounting brackets included
- Sleek, low profile design facilitates installation
- Electronic thermal management
- Pressure equalization through GoreTex Breather technology
- āUnbreakableā polycarbonate lens with hardcoat lacquer
- IP68 watertight
- 5 year warranty
- Supplied with male/female connectors (pre-wired)
- Designed & manufactured in UK
Ā
Technical Specifications:
Based on: 1x Linear-6 Elite.
| Voltage Range | 10-32V |
| LED Life | 50,000 hours |
| IP Rating | IP68 |
| Weight | 1.1 lbs |
| HIGH BEAM FUNCTION | Ā |
| Total Luminous Flux | 4050 Lm |
| Total Driver 'FOV' FluxĀ ā | 2884 Lm |
| Color Temperature | 5000K |
| Number of High Output LEDs | 12 |
| Power Consumption | 42 Watts |
| Current Draw (at 14.4V) | 2.9 Amps |
| DIMENSIONS | Ā |
| Width | 9.13" |
| Depth | 2.44" |
| Height | 1.57" |
| PHOTOMETRIC DATA | Ā |
| Horizontal Beam Angle | 64 degrees |
| 0.25 lx Line | 563 metres |
| 0.5 lx Line | 398 metres |
| 1 lx Line | 282 metres |
| 3 lx Line | 163 metres |
Ā
ā Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information āĀ click here.
Ā
What's Included:
- 1x Linear-6 Elite LED Light
- 1x Anti-Theft Side Mount Kit (1127K)
- 1x Fitting Instructions
Ā
Instructions:
video Instructions:
